Teensy Saber Chassis & Hilt
Got Pike?
DIY Teensy based lightsaber


What you will need:

Putting it together
First, make sure you watch this excellent video tutorial to familiarize yourself with the Graflex 2.0. We'll be using a different chassis and electronics, but it's important to know how to work the Graflex. If you have some other hilt, such as a real vintage graflex, contratulations, but you're going to have to design your own chassis.

Obtaining a chassis
If you have access to a decent 3d printer, go here, download part 1, 2 and the battery holder and print them out. If you do not, you can order them printed from the same link, or if you like to have them printed in stronger materials, you can get the parts from Shapeways instead. I printed mine of a Form 2 printer, if you have one available, I recommend using the "tough" resin.

The touch button

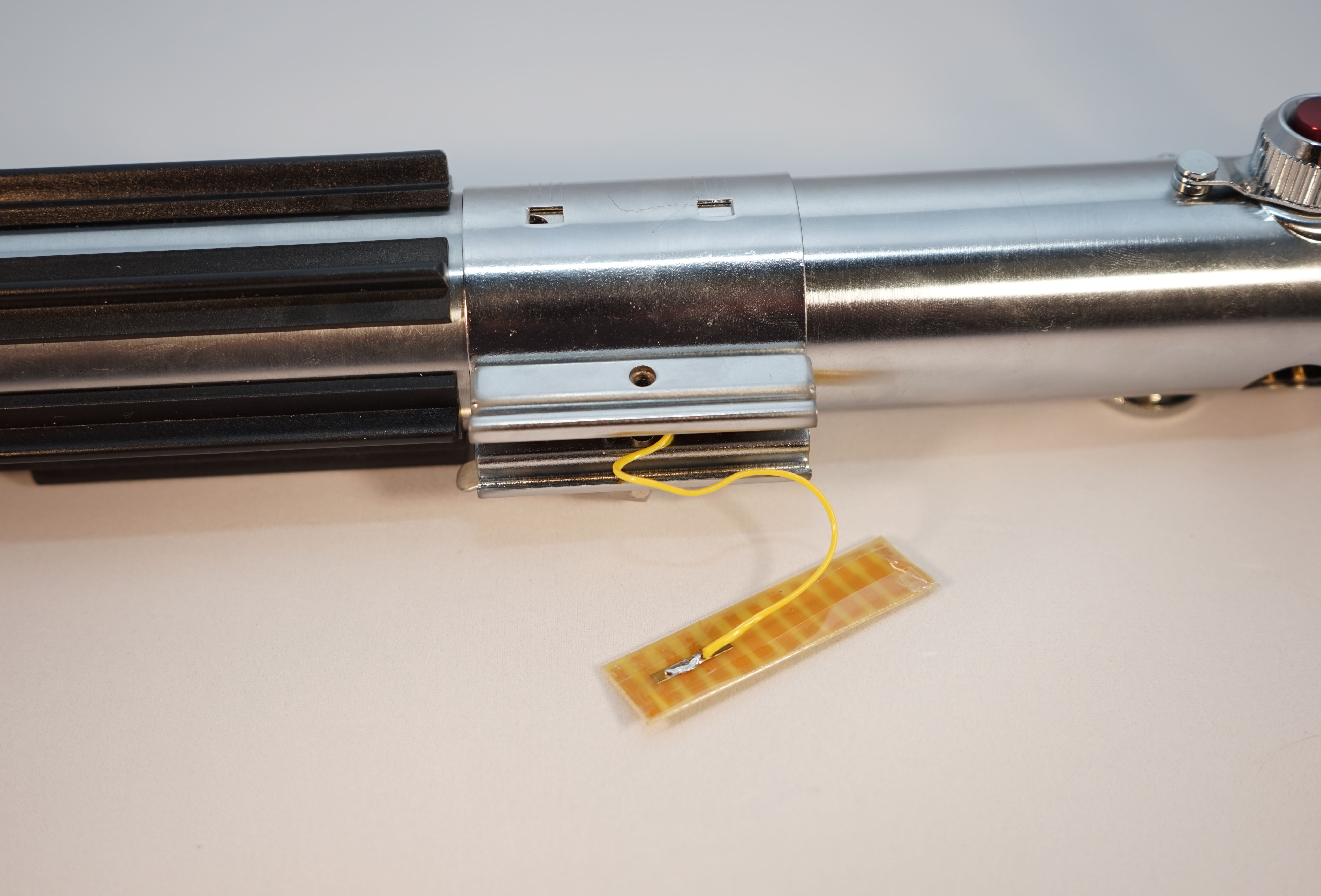

For my light saber, I decided to use the circuit board clamp card, and wire it up as a touch button. Note that "touch" is a bit of a misnomer, as you're not actually supposed to touch the copper parts directly, as static electricity can potentially fry the teensy that way. The solution is simply, just wrap the clamp card in some packing tape (after you solder a wire to the back of it). Of course, if you prefer you can use switches in the clamp, as they do in the video tutorial above.

The PJRC forum says that touch buttons works better if you connect the hilt to the ground of the circuit one way or another, I did not do that, but it seems to work quite well anyway.

Stuffing

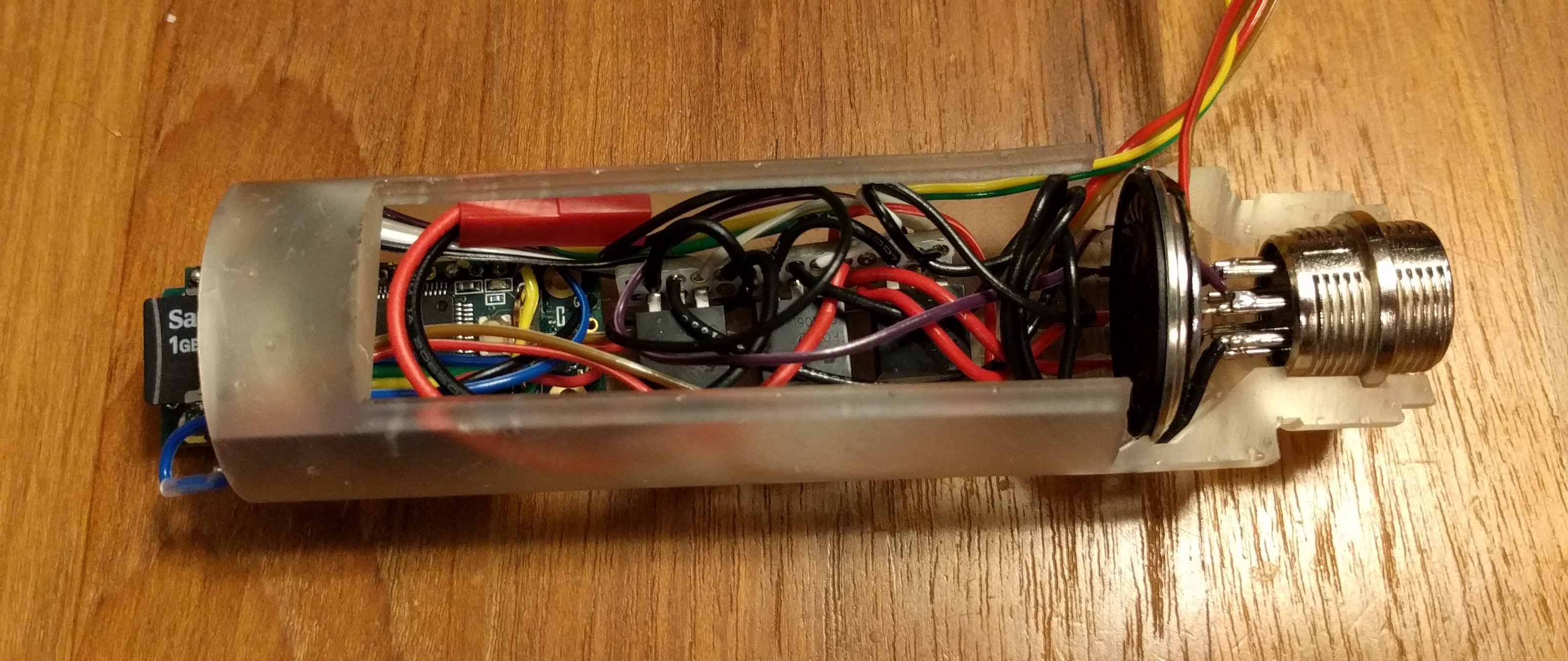

When it comes time to stuff the electonics into the chassis, it should end up looking something like this:

A few things to note:
  • The vent-like slots near the speaker are actually wire channels to let the wires go around the speaker to the blade connector.
  • The electronics is not actually anchored, once the battery is in place, the cables does the job.
  • The sd card and usb slot is where the pommel will go.
  • See the little notch at the base of the neck? Once you put the top piece on, you can use a rubber band to hold the chasis together.
  • The electronics stick out a little at the bottom, this is ok as there is a little space in the pommel itself for them.

You'll need to file or cut down the nobs that stick out from the grips on the inside of the graflex to fit this chassis. I used a dremel with a sand paper bit, which was easy, but took a long time since I didn't want the screws to get so hot that they melted the grip plastic.

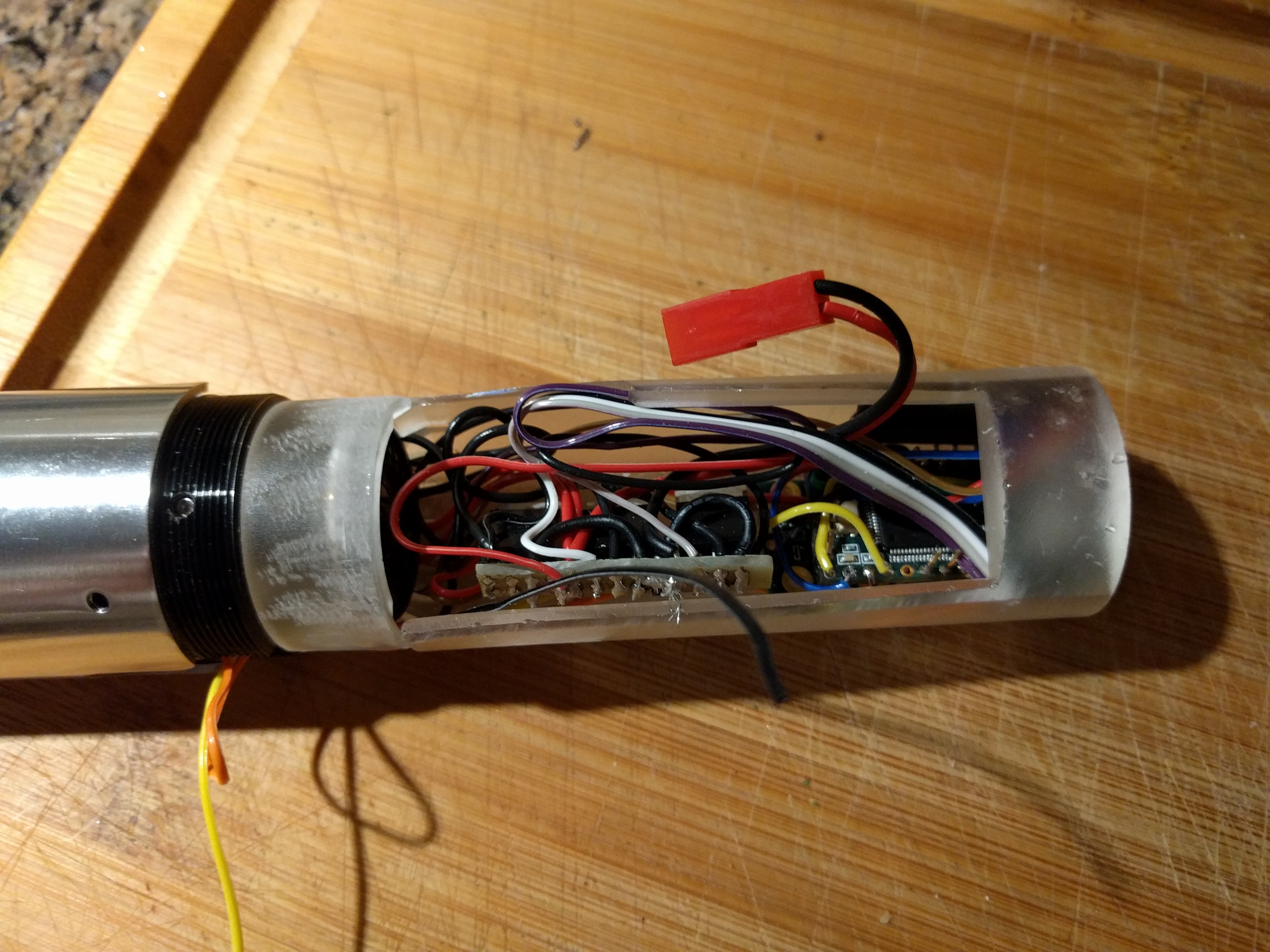

Once you put the top piece on and insert it into the blade holder, it looks something like this:

At this point, all you should need to do is to wire up your switches, plug the battery in, put the battery holder into place and put the bottom part of the hilt back on, and you should be done with the hilt. As you can see I broke off a piece of the chassis. It doesn't actually matter and it works just fine anyways, but this is why I recommend getting the chassis printed in the strongest material you can.

Problems? Questions? Suggestions? Check out The Crucible.
