Teensy Saber V2 Test Rig

back

DIY Teensy based lightsaber

This test rig allows you to test a TeensySaber V2.x board without having to solder it to a Teensy.

Download TeensySaber V2.x test rig KiCad files here.

What you will need:

2 x TeensySaber Test Rig PCB
4 x 20mm M3 screws.
16 x M3 washers
12 x M3 nuts
29 x pogo pins
4 x 10k through-hold resistors 3 x 3mm LEDs
3 resistors suitable for the LEDs (If your LEDs are ok with ~4 volts, you can use wires.)
1 x 13-pin female 0.1" header
1 x 14-pin female 0.1" header
1 x 2-pin female 0.1" header
a bunch of 1-row 0.1" breakable pin headers.
a bunch of 0.1" jumpers
A clip to hold the teensysaber board in place.

Assembly

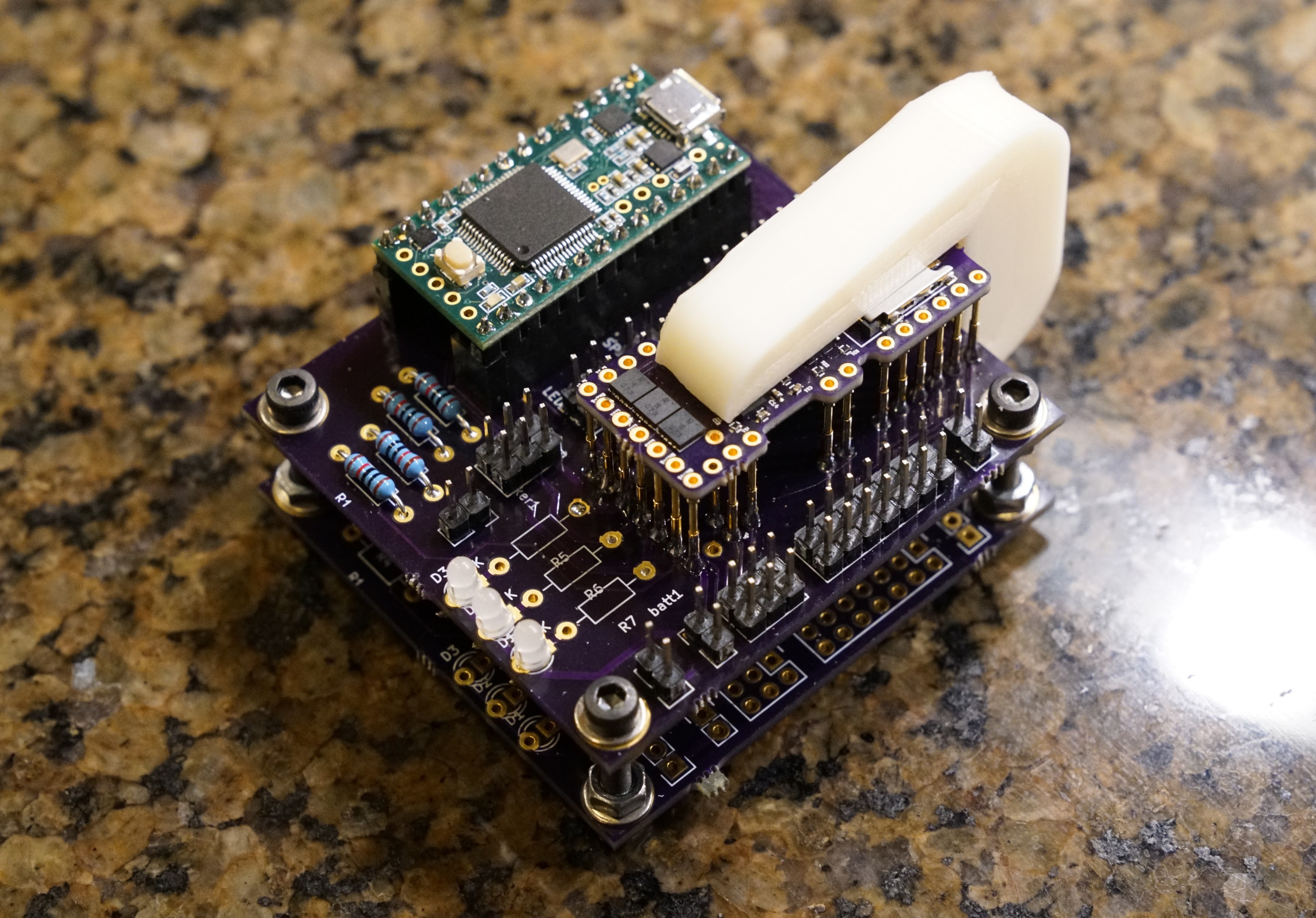

Assembly is pretty straightforward. Solder all the headers, resistors and LEDs into place and trim the legs. Screw two PCBs together with the 20mm screws. The one with all the components on it goes on top. The bottom one is left completely unpopulated. Insert the pogo pins and solder them to the top board. Solder some pin haders to a Teensy 3.2, matching the female headers on the board. Put the Teensy in place and flash the TeensySaber firmware on it.

Caveats

There are several things that could be improved on this test rig, but the most important one is that there is quite a lot of crossover between audio and sd card communications. This leads to some hiss and distortion, so this setup does not work for evaluating sound quality.

Pinout

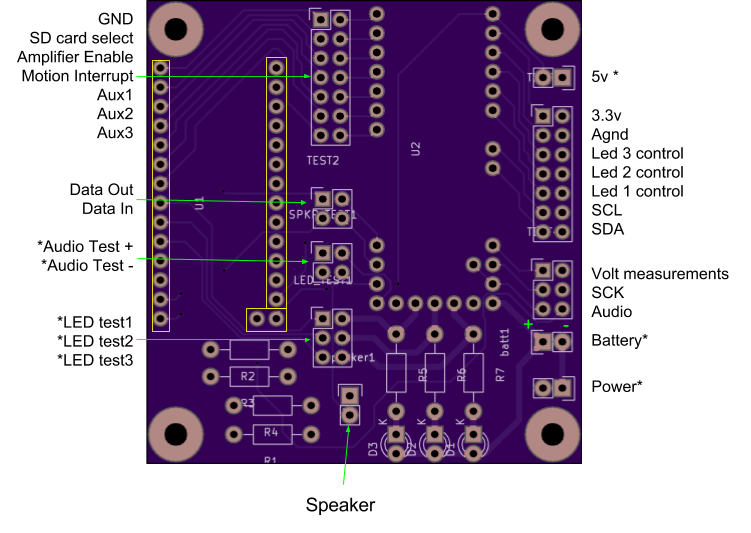

All the pins that DON'T have an asterisk should normally be jumpered. The yellow outlines show where to put the female headers. For the pins that do have an asterisk, keep reading:

5v - this connects the 5v produced by the teensysaber board with the 5v pin on the teensy. Do not bridge this while your teensy is hooked up to an USB connection unless you have cut the vin-vusb apart on your teensy. (I don't recommend cutting the vin-vusb on your testing teensy though.)
Battery - This is where you plug in a single ~3.8v power source. Unfortunately the polarity is not marked on the board.
Power - Bridge this to turn power the booster and audio (and the teensy if you have the 5v jumper.)
Audio Test - Allows the teensy to sense the output from the amplifier with analogread. There is no code that utilizes this at this time, so leave it open.
LED test - Allows the teensy to sense the output from the FETs. There is no code that utilizes this at this time, so leave it open.

Test procedure

Before you put the TeensySaber board on the test platform, measure the resistance between BATT+ and BATT-. If the resistance is basically zero, it might burn the traces on the test rig when we plug in a battery. Check the resistance between BATT+ and GND the same way.
Insert a formatted SD card with some wav files on it.
Make sure the battery is disconnected from the test rig.
Put the teensysaber board on the pogo pins, press down and use the clip to hold it in place.
Connect the battery.
If your teensy is powered by usb, you should reboot it. (Either type "reboot" in serial monitor, press program button, or unplug usb temporarily.)
Try "on", "off", "beep", "dir", "monitor motion", "batt" and "play somefile.wav" commands.
If they all work, and behave as expected, the board is working.
Disconnect batter.
Rermove board.
